Bighaul Wire Rope Hoists

Bighaul Wire Rope Hoists

Regular price $620.00
Regular price Sale price $620.00
Sale Sold out
Tax included.

Model Bighaul-C/w 20m of Wire Rope. Complies to AS 1418.2 Compact High Strength Aluminium Alloy Housing.

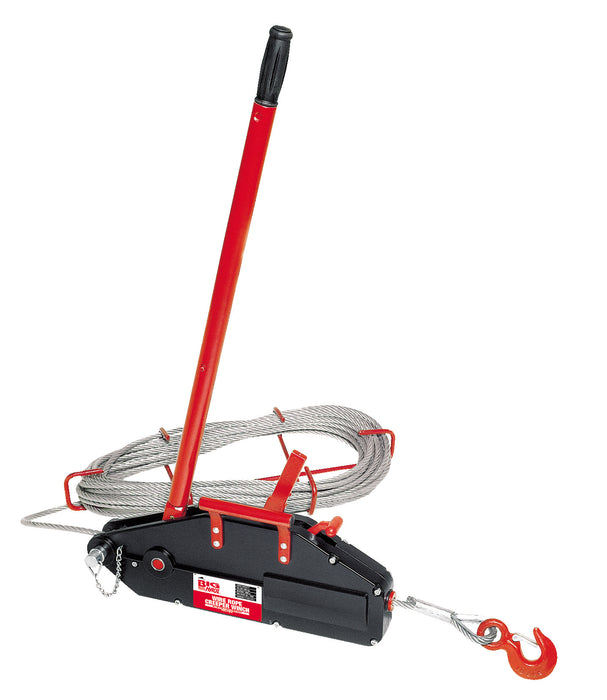

A versatile portable and compact creeper winch for pulling, lifting, lowering, spanning, 4WD recovery and securing loads over large distance.

  • Lightweight, safe and easy to operate.
  • Compact, high strength aluminium alloy housing with smooth contour design, a large flat base surface for increased stability in horizontal and vertical working positions.
  • An overload protection system is built-in with a shear pin in the forward lever which will shear when approximately 25% overloaded. The broken pins can be replaced without removing the load. Spare pins are located in the operating lever for RVBH08 and in the handle RVBH16 and RVBH32.
  • Forward and reverse lever placed in tandem, providing a slim compact design for storage and ensuring maximum power transfer.
  • The rope clamp system is easily disengaged with a lever, allowing smooth installation of the wire rope.
  • The Big Haul Creeper Winch comes complete with operating lever and 20m of wire rope mounted on a reel for all models. The rope is fitted with a safety latch hook at one end and is tapered at the other end and is insertion into the unit.
  • The Big Haul Creeper Winch has a parallel damping system, which has a large surface contact area, providing an evenly distributed grip at a lower force that results in less rope wear.
  • The system offers a longer rope advance and requires less handle pulling effort, thus increasing operator efficiency.
  • All models are equipped with an anchor bolt, that offers numerous connection possibilities with load hooks, wire rope and chain slings.
  • All Big Haul Creeper Winches are tested and have individual serial numbers for easy traceability to a test certificate.
  • Big Haul Creeper Winches are easy to maintain, service and repair.
