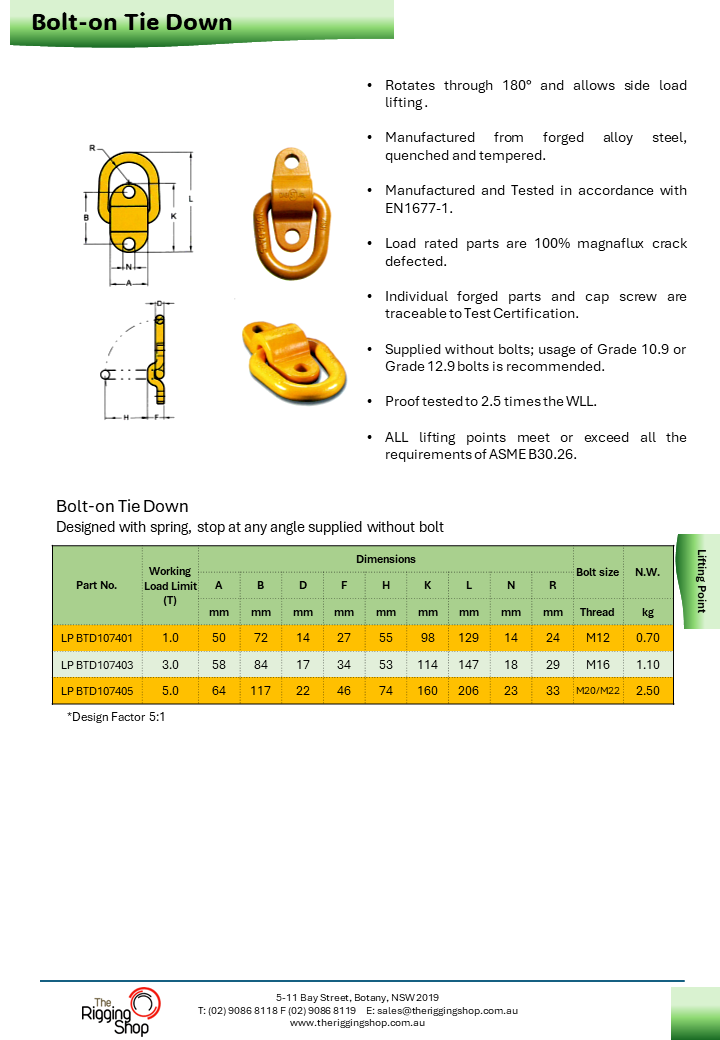

Bolt-on Tie Down

Bolt-on Tie Down

Designed with spring, stop at any angle supplied without bolt.

• Rotates through 180° and allows side load lifting .
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and Tested in accordance with EN1677-1.
• Load rated parts are 100% magnaflux crack defected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Supplied without bolts; usage of Grade 10.9 or Grade 12.9 bolts is recommended.
• Proof tested to 2.5 times the WLL.
• ALL lifting points meet or exceed all the requirements of ASME B30.26.
